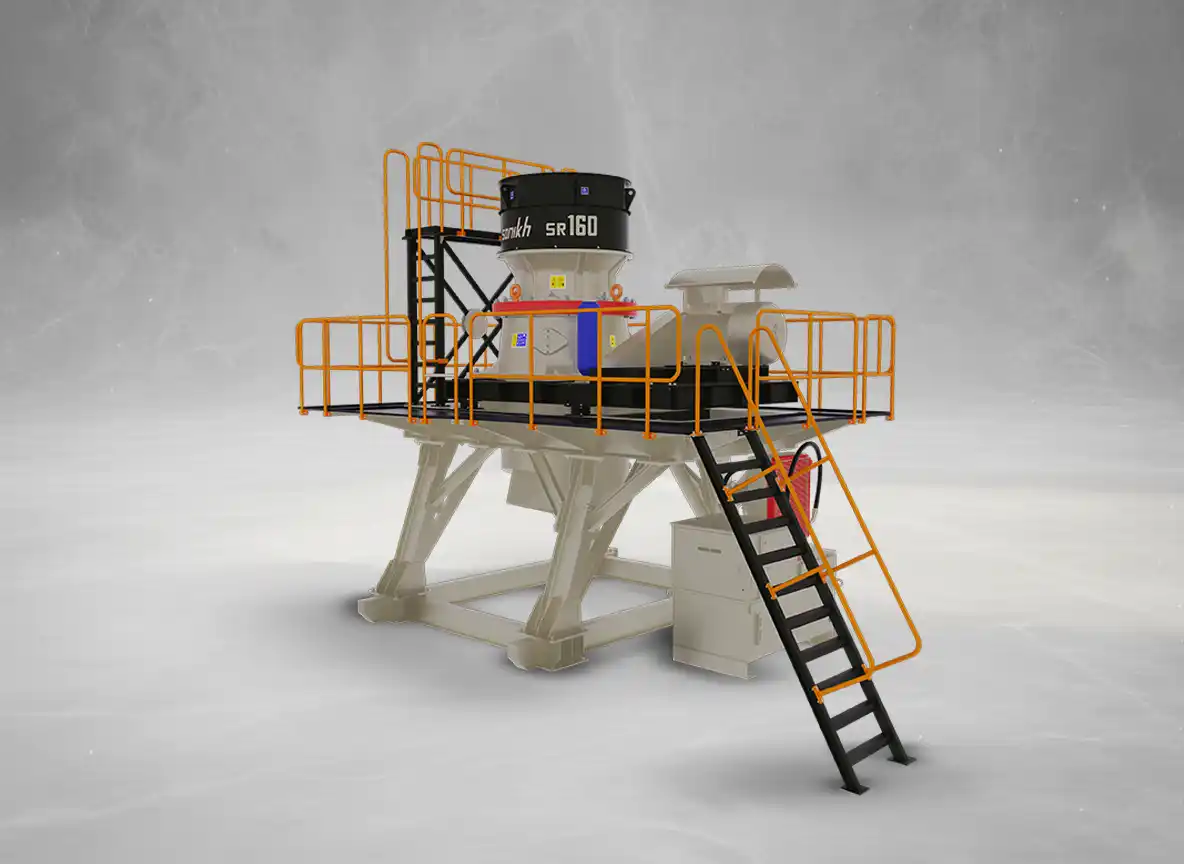

CONE CRUSHER
It offers many advantages over other crusher designs, such as low energy consumption, reliability, high efficiency (compared to other crushers), and a high reduction ratio (feed/input size compared to product/output size).
Despite being present in many industries, it is most commonly used in the construction and mining industries.
Cone crushers are generally found in use for secondary, and downstream crushing services, with jaw crushers used for primary crushing operations
MODEL |
MOTOR POWER |
MAX. FEED SIZE |
NOMINAL CAPACITY (TPH) CURSHER RUNNING AT CSS (MM) | |||
|---|---|---|---|---|---|---|
SR 120
|
100
|
250
|
20
|
35
|
45
|
50
|
80-90
|
95-115
|
115-125
| ||||
SR 160
|
150
|
350
|
60-80
|
90-120
|
125-140
|
135-160
|
SR 220
|
214
|
450
|
50-75
|
80-120
|
125-150
|
155-220
|
TECHNICAL DATA - (MECHANICAL SPECIFICATION)
COARSE SERIES
| MODEL | SR 120 | SR 160 | SR 220 |
|---|---|---|---|
Feed opening (mm) |
150 |
180 |
220 |
Feed Size (Max.) |
120 |
150 |
200 |
*Capacity (TPH) |
80-110 |
100-225 |
140-320 |
CSS Range (mm) |
22-30 |
24-32 |
24-35 |
Total Weight in Kg |
7000 |
11000 |
14000 |
Motor Power(kw/hp) |
75/100 |
100/150 |
160/215 |
FINE SERIES
| MODEL | SR 120 | SR 160 | SR 220 |
|---|---|---|---|
Feed opening (mm) |
60 |
80 |
100 |
Feed Size (Max.) |
55 |
70 |
85 |
*Capacity (TPH) |
60-90 |
85-140 |
120-185 |
CSS Range (mm) |
10-22 |
12-26 |
14-28 |
Total Weight in Kg |
6700 |
10500 |
13500 |
Motor Power(kw/hp) |
75/100 |
100/150 |
160/215 |
Design Type |
Eccentric Bush | ||
Bearing |
Heavy Thrust Bearing | ||
Mounting Type |
Skid Mounted | ||
Lubrication |
Pressurized Oil & Grease | ||
Drive |
V- Belt Drive with Deep Groove Pully | ||
Construction |
High Grade Cast Steel Casting | ||
Power Supply |
415 V / 50HZ | ||
NOTE: All the above technical details may vary based on application & design development
- Cone Crushers Are Commonly Used for Crushing granite, dolomite, limestone, coal, etc.
- Ore mining (iron, manganese, chromite, bauxite, etc.)
- Industrial applications (slag, anodes, metallurgy, refractory, etc.)
- Sand and gravel Construction aggregates.
