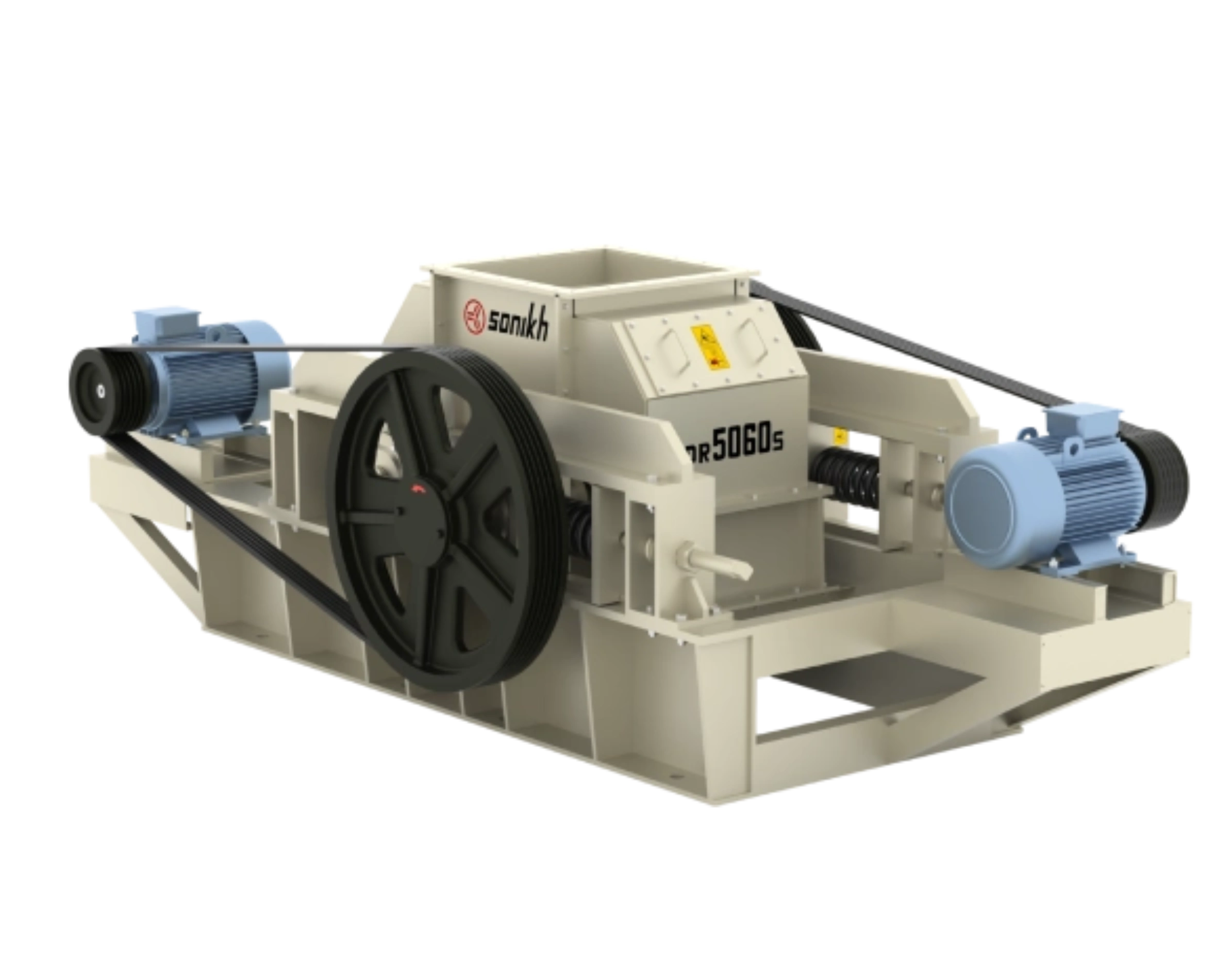

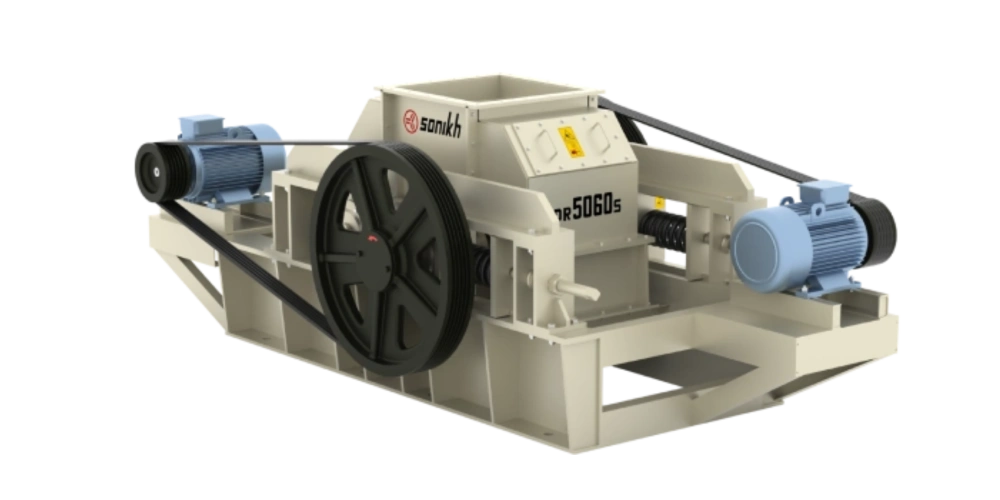

ROLLER CRUSHERS

SONIKH offers two configurations of roller crushers: Smooth Roll Crusher and Toothed Roll Crusher, selected based on specific application requirements. The roller crusher delivers optimal crushing force through adjustable spring arrangements and variable roll speeds. Crushing pressure directly influences the reduction ratio, while roll speed controls the throughput capacity.Roller crushers are ideal for processing easily crushed materials including limestone, dolomite, coal, coke, slag, quartz, and similar products. The material is compressed between two rotating rolls one fixed and one floating producing high crushing pressure for consistent and efficient size reduction.

WHY SONIKH DOBBLE ROLLER CRUSHER

SONIKH Roller Crushers are engineered to deliver superior performance and long-term value by combining low operating costs with high throughput and controlled product sizing. Designed to minimize the generation of fines, these crushers maximize usable output, ensuring an excellent return on investment.

Built for demanding mineral processing environments, the robust construction features a heavy-duty fabricated steel base frame with replaceable abrasion-resistant liners, providing exceptional durability and extended service life. Operator safety and ease of use are integral to the design, with an automatic tramp relief system that allows uncrushable materials to pass through the crusher without interrupting operation.

To suit a wide range of applications, SONIKH Roller Crushers offer flexible adjustment of roll speed and gap settings. The mechanically actuated yoke mechanism applies high crushing pressure, enabling efficient processing of even the hardest minerals with consistent and reliable results.

APPLICATIONS

The rigorous demands of a plant operation calls for a tough but easily operated equipment and our SDRC is the best in the market, and have long been used in a variety of applications.

coal

M-Sand

Bauxite

coal

M-Sand

Bauxite

Fledspare

Fledspare

Limestone

Limestone

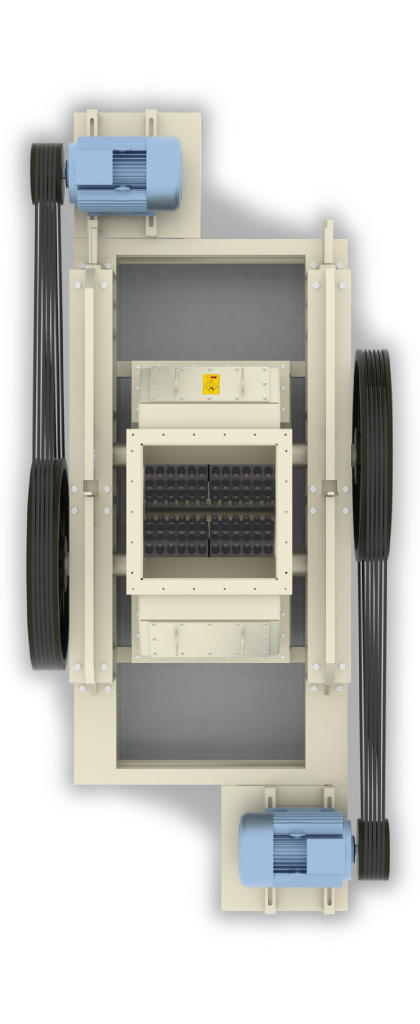

FEED HOPPER
The roller crusher feed hopper ensures uniform
and controlled material feeding into the
crushing chamber, improving efficiency and
preventing blockages.

SPRING
The roller crusher spring
provides controlled pressure and
shock absorption, protecting the
crusher from overloads while
maintaining consistent crushing
force and stable operation.

DRIVE MOTOR
The roller crusher drive motor delivers reliable power and controlled torque to ensure efficient, continuous, and stable crushing performance.

FLYWHEEL
The roller crusher flywheel stores kinetic energy to maintain smooth rotation, reduce power fluctuations, and protect the drive system during crushing operations.

FEED HOPPER
The roller crusher feed hopper ensures uniform
and controlled material feeding into the
crushing chamber, improving efficiency and
preventing blockages.

SPRING
The roller crusher spring
provides controlled pressure and
shock absorption, protecting the
crusher from overloads while
maintaining consistent crushing
force and stable operation.

DRIVE MOTOR
The roller crusher drive motor delivers reliable power and controlled torque to ensure efficient, continuous, and stable crushing performance.

FLYWHEEL
The roller crusher flywheel storeskinetic energy to maintain smooth rotation, reduce power fluctuations, and protect the drive system during crushing operations.

ADVANTAGES

The Sonikh SDRC is designed to handle the hardest and most challenging minerals, making it an excellent solution for sand manufacturing applications. It delivers a consistent, high-quality fine product while keeping unwanted fines to a minimum. Additionally, the SDRC offers the advantage of scalability, allowing production capacity to be increased from the same machine even after installation, ensuring long-term operational flexibility.

SALIENT FEATURES

High capacity with low horsepower

Ability to handle wet & sticky Feeds

Ability to produce a cubical product with minimum fines generation

High Production Efficiency

Easy of Maintenance

Energy Efficiency

Decreased Circulating Load

Higher Pressure Mechanical System

Improved Roll Thickness

TECHNICAL SPECIFICATIONS

MODEL TYPE
SIZE
SDR 5060 S
SDR 6060 S
SDR 8060 S
SDR 8080 S
SDR 8010 S
SDR 1080 S
SDR 1010 S
SDR 1012 S
SDR 1212 S
SDR 1415 S
Application
Coal, Limestone, dolomite, slag, Refractory
Roller Dia
mm
500
600
800
800
800
1000
1000
1000
1200
1400
Roller Width
mm
600
600
600
800
1000
800
1000
1200
1200
1500
Max. feed Size
mm
20
20
30
30
30
40
40
50
60
80
Product Size
mm
0 - 6
0 - 8
0 - 8
0 - 8
0 - 10
0 - 10
0 - 10
0 - 12
0 - 15
0 - 20
Capacity
MTPH
6.-20
15-35
25-50
30-60
35-50
40-80
40-80
40-80
40-80
40-80
Motor Power
HP
10
30
30
40
60
60
75
100
120
150
Motor Install
No
2
2
2
2
2
2
2
2
2
2
MODEL TYPE
SIZE
SDR 6580T
SDR 8080T
SDR 6510T
SDR 8012T
SDR 6515T
SDR 8015T
SDR 8020T
SDR 8024T
Application
Coal, Limestone, dolomite, slag, Refractory
Roller Dia
mm
650
800
650
800
600
800
800
800
Roller Width
mm
800
800
1000
1200
1500
1500
2000
1500
Max. feed Size
mm
130
150
130
150
130
150
150
150
Product Size
mm
20-60
20-80
20-60
20-80
20-60
20-80
20-80
20-80
Capacity
MTPH
80-150
100-180
120-200
150-280
150-250
180-300
200-350
250-400
Motor Power
KW/HP
18/25
22/30
22/30
30/40
30/40
37/50
56/75
75/100
Motor Install
No
2
2
2
2
2
2
2
2

NOTE:

Product features and specifications are subject to change without prior notice or obligation. Due to continuous product development, we reserve the right to change the
specifications without notice. Photographs and drawings are provided for illustrative purposes only and may vary from the standard product. Sonikh’s liability shall be limited
to the equipment.

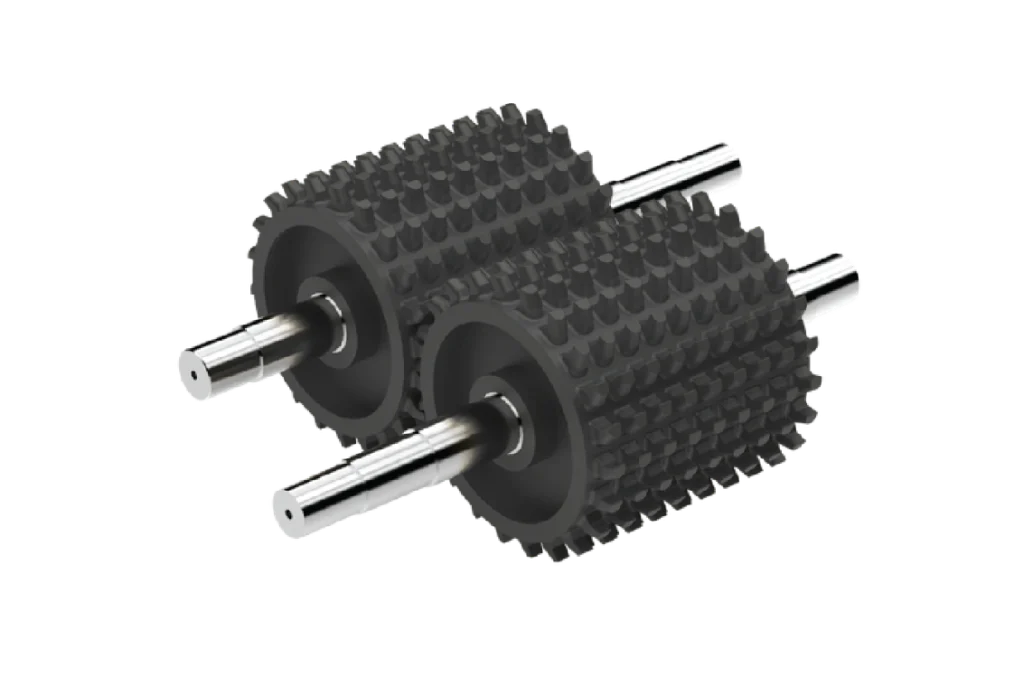

TOOTH ROLLER CRUSHER

  • Engineered with high-strength hard alloy teeth, the crusher delivers exceptional impact resistance, superior wear protection, and a long operational life.
  • The double-toothed roller crusher is specially designed to handle wet and viscous materials with ease, providing consistent, efficient crushing without sticking or clogging— ensuring uninterrupted performance and maximum productivity.

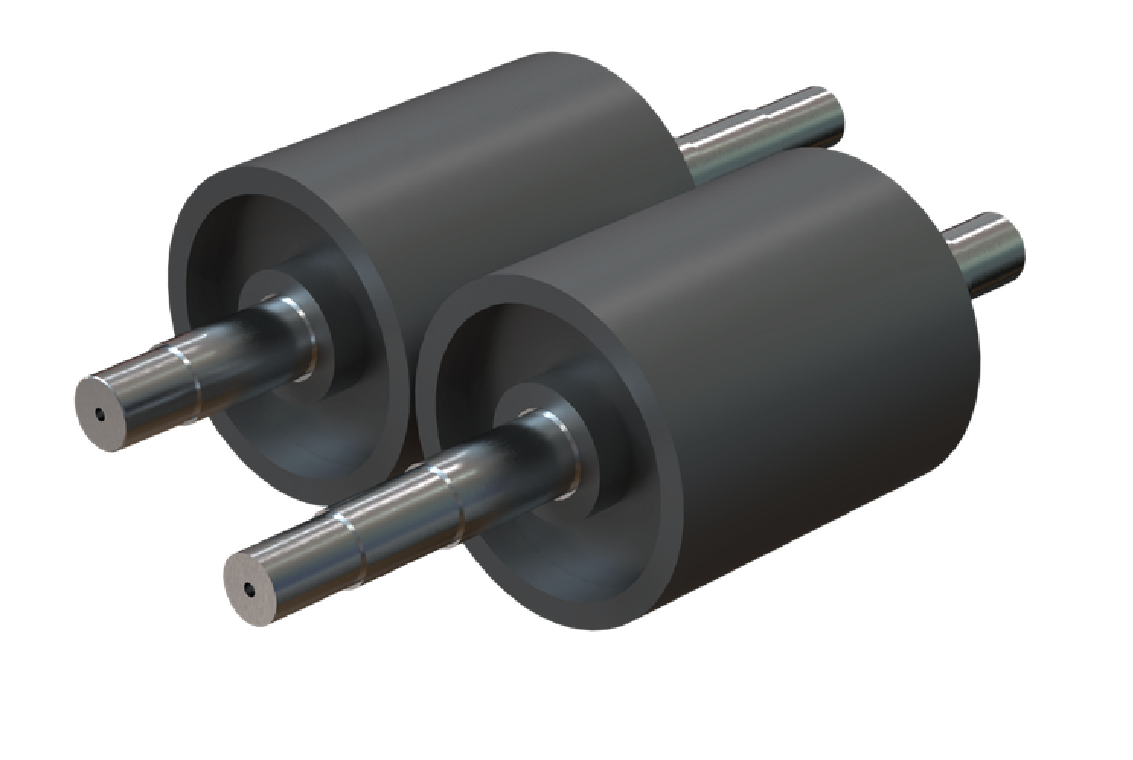

SMOOTH ROLL CRUSHER

  • This system plays a vital role in bulk raw material preparation across a wide range of applications, including industrial minerals such as dolomite, quartz, limestone, and quartzite, as well as clays, coal fines, coke breeze, and gypsum waste.
  • The rollers are equipped with hard-faced or high-chrome alloy renewable shells, engineered to deliver exceptional wear resistance and significantly extend the intervals between resurfacing—maximizing uptime and reducing maintenance costs.
