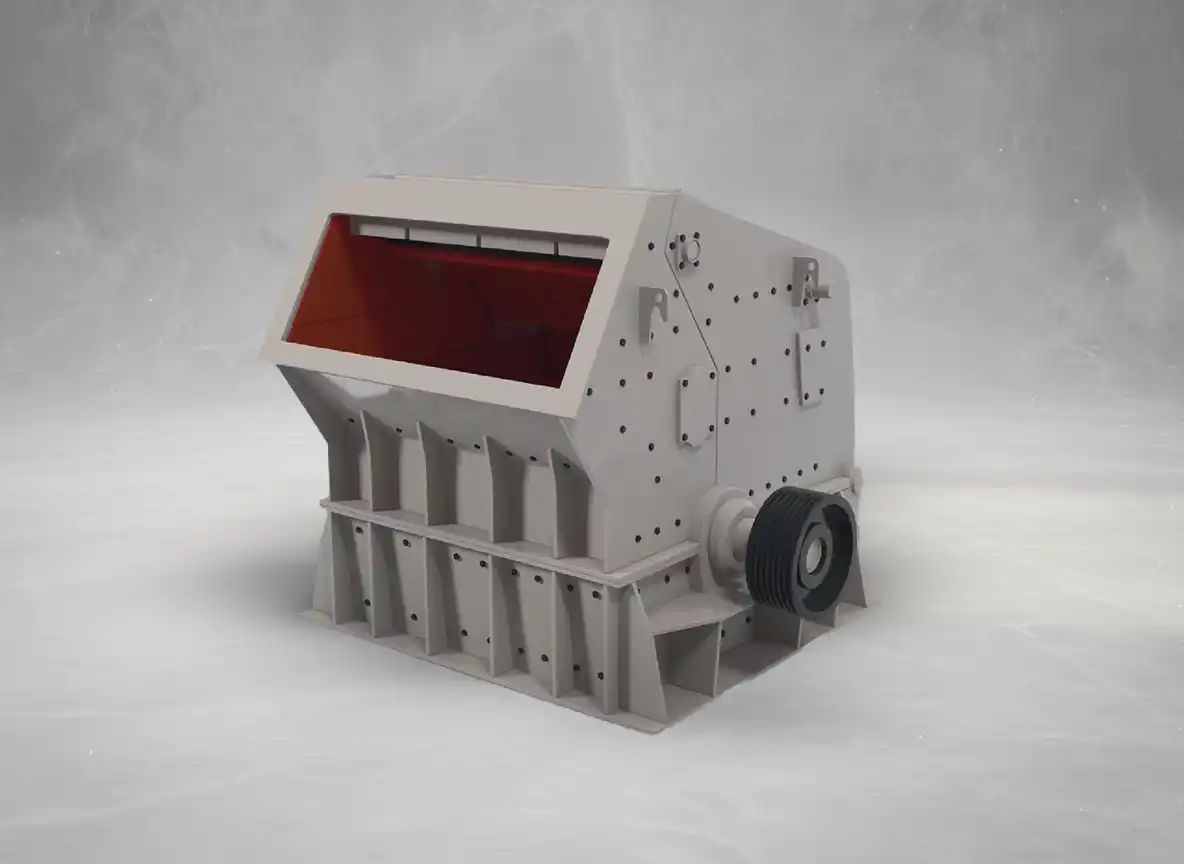

HORIZONTAL SHAFT IMPACTOR
SK SERIES
HORIZONTAL SHAFT IMPACTOR
“SK Series” Horizontal shaft Impactors are majorly used to crush coal sizing below 6mm to further feed in to Fuidized bed boiler. With its versatile applications, this equipment can also be used in coal washery, sponge iron plant and Cement plant for crushing minerals such as
gypsum, limestone, calcium carbonate, dolomite and anymore.
SPECIFICATION
| MODEL | ROTOR DIAMETER (MM/INCH) | ROTOR WIDTH (MM/INCH) | MAX FEED SIZE (MM/INCH) | MAX POWER (KW/HP) | THROUGHPUT CAPACITY |
|---|---|---|---|---|---|
SK 8080 |
800/31 |
800/31 |
200/8 |
45/60 |
90 |
SK 8010 |
800/31 |
1000/40 |
200/8 |
45/60 |
90 |
SK 8010 |
1000/40 |
800/31 |
300/12 |
55/75 |
120 |
SK 1010 |
1000/40 |
1000/40 |
300/12 |
55/75 |
165 |
SK 1012 |
1000/40 |
1200/47 |
300/12 |
90/120 |
165 |
SK 1212 |
1200/47 |
1200/47 |
400/15 |
110/150 |
200 |
SK 1215 |
1200/47 |
1500/60 |
400/15 |
132/180 |
250 |
SK 1220 |
1200/47 |
2000/78 |
400/15 |
200/270 |
450 |
SK 1224 |
1200/47 |
2400/94 |
400/15 |
250/335 |
500 |
SK 1415 |
1400/55 |
1500/60 |
600/24 |
200/270 |
400 |
SK 1418 |
1400/55 |
1800/70 |
800/32 |
225/300 |
450 |
