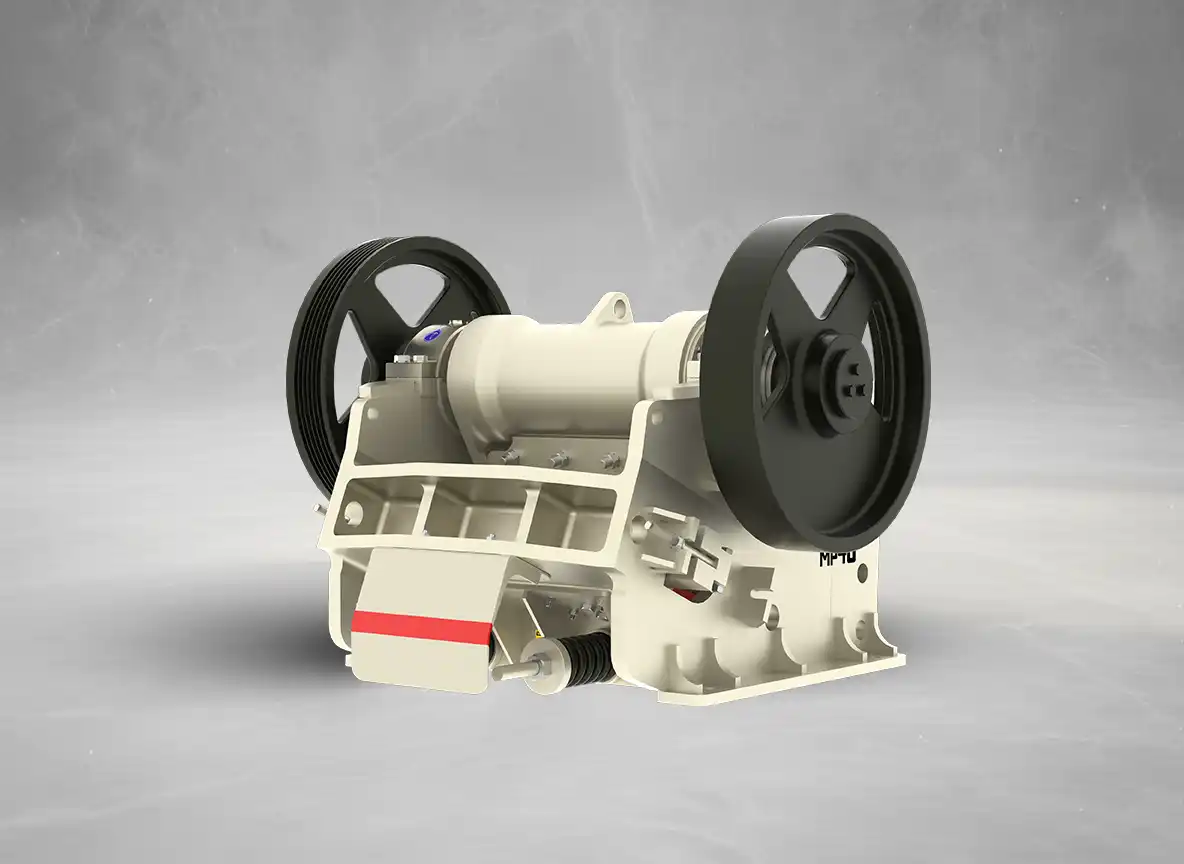

JAW CRUSHER MP
JAW CRUSHER MP
The Sonikh MP Series is engineered for portability and ease to use. The rugged design delivers highly productivity line that are safe to operate, easy for maintenance and earlier uptime
avalibality.
Typical application for our single toggle jaw crusher are in mining, quarrying and recycling, with various application for hardest rock.
TYPICAL APPLICATIONS OF OUR MP JAW CRUSHERS
Ore Mining
Iron, manganese, chromite, bauxite etc.
Rock Quarries
Granite, Quartzite, Dolomite, Limestone, Coal etc.
Construction
Aggregates and recycled concrete.
Natural Materials
Sand and Gravel.
TECHNICAL DATA
GENERAL DIMENSIONS
| MODEL | MP16 | MP20 | MP24 | MP30 | MP36 | MP42 | MP48 | MP54 | |
|---|---|---|---|---|---|---|---|---|---|
DATA |
UNIT | ||||||||
L – Overall Length |
MM |
1885 |
1910 |
1697 |
1980 |
2085 |
2075 |
2075 |
2325 |
TH – Total Height |
MM |
1340 |
1440 |
1335 |
1684 |
1720 |
1720 |
1720 |
1783 |
W1 – Width |
MM |
1000 |
1050 |
1110 |
1300 |
1485 |
1620 |
1746 |
1983 |
W2 – Overall Width |
MM |
1365 |
1570 |
1624 |
1822 |
1763 |
2112 |
2385 |
2432 |
TF – Total Feed |
MM |
870 |
940 |
835 |
1028 |
1028 |
1025 |
1025 |
1100 |
F1 – Foundation |
MM |
730 |
730 |
830 |
1000 |
1100 |
1100 |
1100 |
1200 |
F2 – Foundation |
MM |
820 |
920 |
915 |
1150 |
1300 |
1600 |
1600 |
1820 |
D – Flywheel Dia |
MM |
1000 |
1000 |
1000 |
1100 |
1100 |
1200 |
1200 |
1250 |
SPECIFICATION
| MODEL | MP16 | MP20 | MP24 | MP30 | MP36 | MP42 | MP48 | MP54 | |
|---|---|---|---|---|---|---|---|---|---|
MAX, FEED SIZE |
MM |
150-200 |
150-200 |
150-350 |
150-200 |
150-200 |
200-250 |
200-250 |
200-250 |
CAPACITY |
MTPH |
15-30 |
16-40 |
22-50 |
28-60 |
35-70 |
40-80 |
45-90 |
48-100 |
FLYWHEEL SPEED |
RPM |
350 |
350 |
350 |
340 |
340 |
340 |
320 |
320 |
MOTOR POWER |
KW / HP |
22/30 |
30/40 |
37/50 |
45/60 |
55/75 |
55/75 |
75/100 |
90/120 |
WEIGHT |
TON |
4.5 |
5.6 |
6.5 |
7.8 |
10.5 |
13.5 |
15.5 |
17.2 |
